Jass Performance Brake Master Cylinder Stopper (Miata/MX5 NA/NB)
This brake stopper is a rigid structural component designed to mechanically counteract deflection in the brake booster and firewall mounting during high-force application. By maintaining the fixed position of the master cylinder, the unit ensures maximum transfer of pedal input to hydraulic pressure. This results in a significant improvement in pedal firmness and responsiveness.
Technical Specifications and Features
Engineered for optimal braking system integrity:
Functional Design
- Mechanism: Provides defined structural support to inhibit the flexing of the brake servo and firewall under load.
- Performance Output: Yields a more solid and precise brake pedal feel, eliminating the soft, delayed reaction associated with firewall movement.
- Structure: Features a design based on stress calculations for maximum rigidity and material efficiency
Material and Finish
- Finish: Protected by a high-durability, dual-layer coating: Zinc base followed by Black Powder Coating for comprehensive corrosion resistance.
Installation and Compatibility Notes

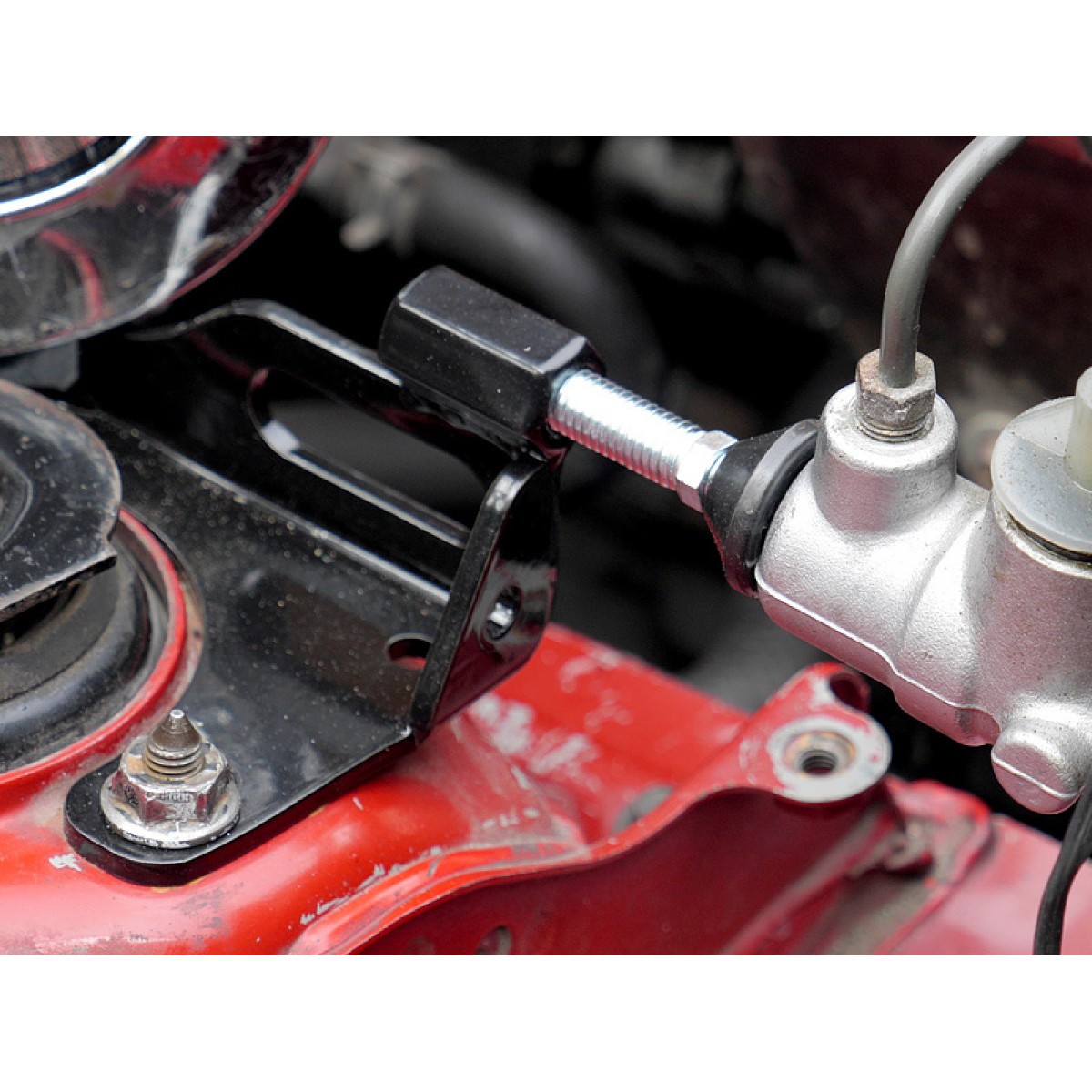

- Mounting: Designed for secure installation onto the strut tower chassis.
- Clearance Restriction:It installs on the strut tower and does not allow the use of strut brace
- LHD Version Note: Please note the LHD version will not work with the stock air box.
-
Both versions /LHD and RHD/ will not work with the latest MK2.5 booster/master brake cylinder combos, which are considerably larger.
The LHD version is used in continental Europe (Germany, France, Norway ...) USA and other countries with similar traffic.
| Mazda MX5 Model | |
| NA (MK1) | |
|---|---|
| NB (MK2) | |
| NBFL (MK2.5) | |
